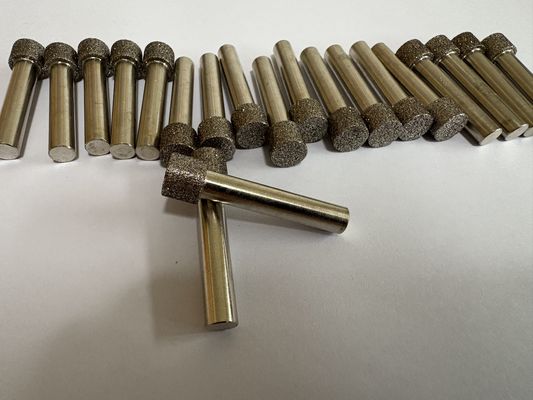

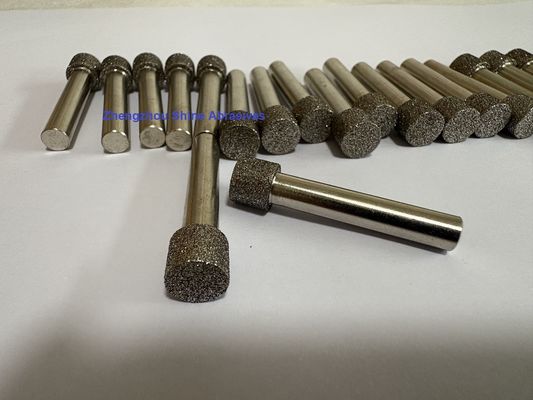

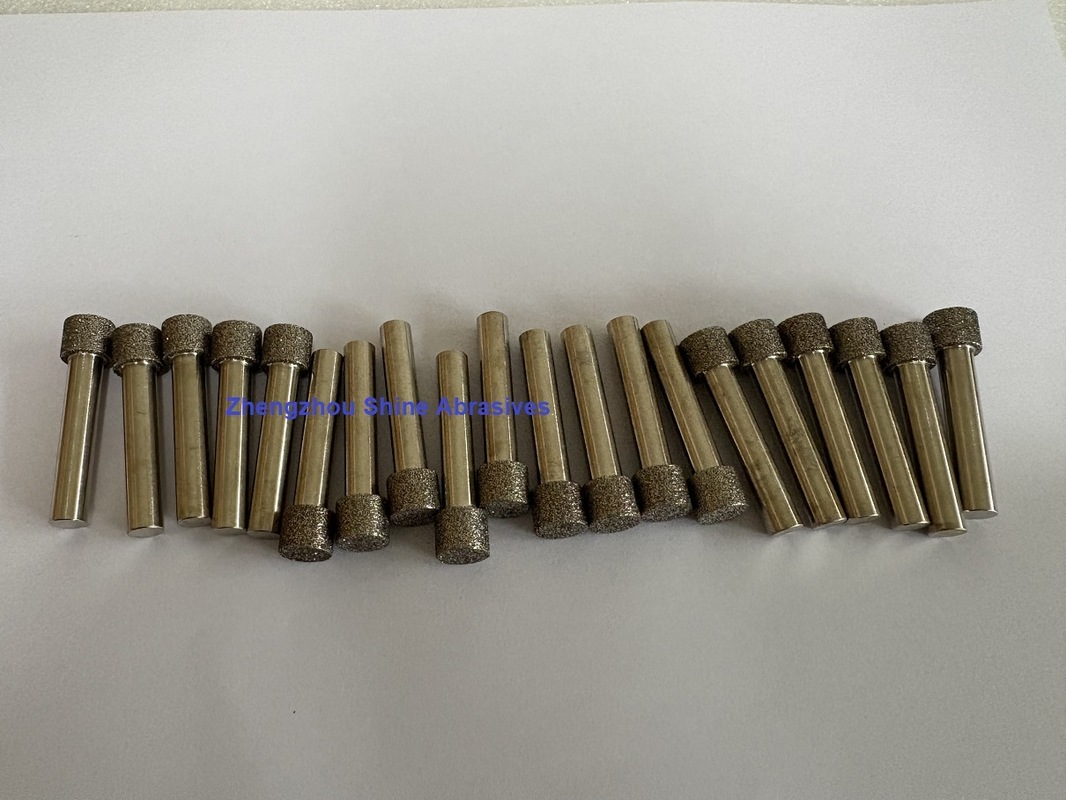

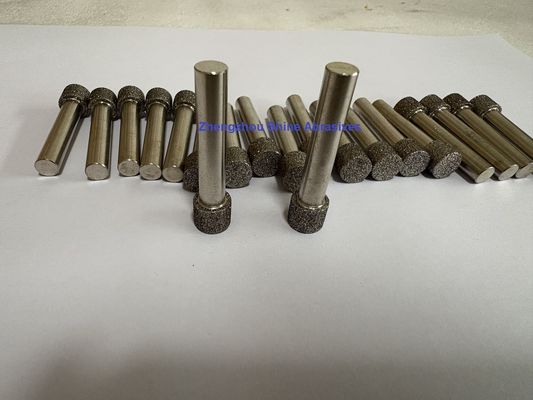

6mm shank CBN Electroplated Mounted Points for Internal Grinding and Deburring

Diamond CBN Electroplated Mounted Points for Internal Grinding and Deburring

Overview:
Diamond CBN (Cubic Boron Nitride) electroplated mounted points are specialized grinding tools designed for internal grinding and deburring applications. These tools feature a small, precisely shaped abrasive point bonded to a metal shank through an electroplating process, making them ideal for intricate work in confined spaces.

Standard drawing:

Size:

G=6,D=10,H=10, L=80mm grit size: D126 or B126

Other sizes are available per requested

Application sample picture.

Key Features:
Electroplated Bonding:

The diamond or CBN abrasives are electrochemically bonded to the metal point, ensuring a strong and stable attachment that enhances cutting efficiency.
Variety of Shapes and Sizes:

Available in various shapes (e.g., cylindrical, conical, spherical) and sizes, allowing for versatility in different applications.
Precision Grinding:

Designed for high precision, making them suitable for detailed work and fine finishing tasks.
Applications:
Internal Grinding:

Used for grinding internal surfaces of various components, including tubes, holes, and recesses in hard materials.
Deburring:

Effective for removing burrs and sharp edges from machined parts, ensuring a smooth finish.
Tool Sharpening:

Utilized in the sharpening of cutting tools, particularly those with intricate geometries.
Aerospace and Automotive Industries:

Commonly used in the manufacturing of components that require high precision and smooth finishes, such as engine parts and hydraulic components.
Medical Device Manufacturing:

Suitable for grinding and deburring components used in medical devices, where precision and cleanliness are critical.

Advantages:
High Cutting Efficiency:

Diamond and CBN abrasives provide superior cutting performance, allowing for faster material removal.
Long Tool Life:

The electroplated bond enhances durability, resulting in a longer lifespan compared to conventional grinding tools.
Excellent Surface Finish:

Capable of achieving high-quality finishes, reducing the need for additional finishing operations.
Versatility:

Suitable for a wide range of materials, including hard metals, ceramics, and composites.
Precision Control:

The small size and various shapes allow for precise control in confined spaces, making them ideal for intricate applications.
Reduced Heat Generation:

Effective cooling properties help minimize heat buildup during grinding, reducing the risk of thermal damage to workpieces.
Conclusion
Diamond CBN electroplated mounted points are essential tools for internal grinding and deburring applications. Their efficiency, durability, and ability to produce high-quality finishes make them invaluable in various industries, including aerospace, automotive, and medical device manufacturing. Proper selection and use will further enhance their performance and effectiveness in precision grinding tasks.
